Model: P1

All Shipments Are Dispatched From Ajmer(INDIA)

Noble Metal Thermocouple (Bare Element)

BUILD YOUR SENSOR >>>

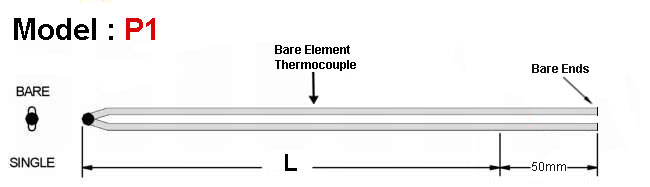

Select Your configuration mentioned Below Diagram
DOWNLOAD PRODUCT CATLOG >>>
link to partial catalogNoble Metal Thermocouple (Bare Element)
Base Metal Thermocouple >>>

A thermocouple is an electrical device consisting of two dissimilar electrical conductors forming electrical junctions at differing temperatures. A thermocouple produces a temperature-dependent voltage as a result of the thermoelectric effect, and this voltage can be interpreted to measure temperature.

Type R Thermocouples are high rhodium used for temperature range 0 to 1600°C & sometimes lower temperature applications for its high accuracy +/-0.25% and stability.

Type B Thermocouples are suited for extremely high temperature applications where temperature goes up to 1800°C with accuracy +/-0.50%.

Type S Thermocouples, similar to type R Thermocouple are used temperature up to 1600°C & sometimes lower temperature applications for its high accuracy +/-0.25%.



Noble Metal Thermocouple,Type R Thermocouple,Type B Thermocouple,Type S Thermocouple,S Type Thermocouple,R Type Thermocouple,B Type Thermocouple,Thermocouple Manufacturers in India

Wire Dia.






Calibration

  Standard Limits of Error
Standard
TYPE S
TYPE R
TYPE B

"L" Dimension on above diagram
