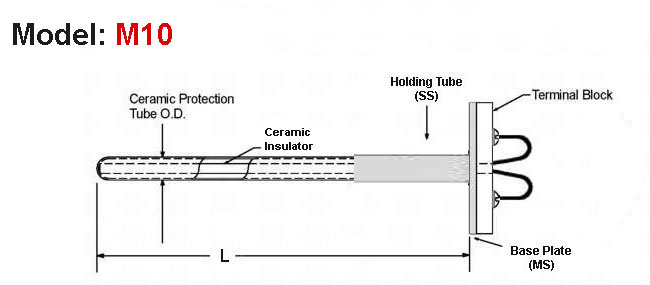

Model: M10

All Shipments Are Dispatched From Ajmer(INDIA)

Base Metal Thermocouple With Terminal Block Assembly

BUILD YOUR SENSOR >>>
Select Your configuration mentioned Below Diagram
DOWNLOAD PRODUCT CATLOG >>>
link to partial catalog Base Metal Thermocouple With Terminal Block Assembly
Base Metal Thermocouple >>>

A thermocouple is an electrical device consisting of two dissimilar electrical conductors forming electrical junctions at differing temperatures. A thermocouple produces a temperature-dependent voltage as a result of the thermoelectric effect, and this voltage can be interpreted to measure temperature.

Type K Thermocouple is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C with it's temperature range of -200°C to 1300°C and accuracy +/- 0.75%

Type J Thermocouple has a more restricted range −40°C to 750°C than type K but higher sensitivity of about 50 µV/°C with accuracy +/- 0.75%.



Base Metal Thermocouple,Type J Thermocouple,Type K Thermocouple,Thermocouple Manufacturer in INDIA,J Type Thermocouple,K Type Thermocouple,Thermocouple With Terminal Block Assembl

Calibration

  Standard Limits of Error
Standard
TYPE J
TYPE K

"L" Length on above diagram

Terminal Block Description


Wire Diameter

Wire Diameter Simplex Duplex
1.6 mm
2 mm
2.5 mm
3.2 mm

Ceramic Tube Size






Personal Informaction

Base Metal Thermocouple With Terminal Block Assembly
