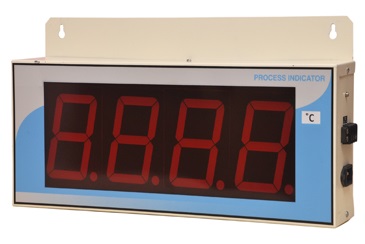

JUMBO PROCESS INDICATOR

All Shipments Are Dispatched From Ajmer (INDIA)

JUMBO PROCESS INDICATOR



Temperature Indicator Jumbo Size,Jumbo Display Indicator,Single Channel Indicator,Multi Channel Indicator,2 Inch Display Indicator,4 Inch Display Indicator

DISCRIPTION

Our Process Indicator accepts input RTD's, Thermocouples, Voltage & Current. The Indicator is suitable for Humidity, Temperature and provide power supply to Transmitter. The input is passed through suitable filters to elinimate unwanted signals. Luw thermal drift opretional amplifier ensures good stability and Calibration point can be set vey accurately. The instrument is housed in compact sheet metal case. AC mains and DC voltage operated cold junction compensation is standard feature in Thermocouple input.


KEY FEATURES

♦ Input : Single Input / Dual Input
♦ Accuracy : 0.25% FSD
♦ Temperature Input : RTD's (PT-100) / Current (0/4-20 mA) / Voltage (0/1-3/5 VDC)
♦ Transmitter Supply : 5/12/24 VDC
♦ Display Size : 7 Segment LED in 2" / 4" / 6" size
♦ Power Option : 230 VAC or 110 VAC or 24 VDC +/- 15%
♦ Working Environment : Temperature(0-50 deg. C), Humidity (35-85% RH)
♦ Enclosuer : Metal case with wall mounting
♦ Display Colour : Red
