Model: M3

All Shipments Are Dispatched From Ajmer (INDIA)
Base Metal Angle Type Thermocouple Elements With Ceramic Insulators
BUILD YOUR SENSOR >>>
Select Your configuration mentioned Below Diagram
DOWNLOAD PRODUCT CATLOG >>>
link to partial catalog Base Metal Angle Type Thermocouple Elements With Ceramic Insulators
Base Metal Thermocouple >>>

A thermocouple is an electrical device consisting of two dissimilar electrical conductors forming electrical junctions at differing temperatures. A thermocouple produces a temperature-dependent voltage as a result of the thermoelectric effect, and this voltage can be interpreted to measure temperature.

Type K Thermocouple is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C with it's temperature range of -200°C to 1300°C and accuracy +/- 0.75%

Type J Thermocouple has a more restricted range −40°C to 750°C than type K but higher sensitivity of about 50 µV/°C with accuracy +/- 0.75%.



Base Metal Thermocouple,Type J Thermocouple Type,K Thermocouple,Angle Type Thermocouple,Thermocouple Manufacturers in India,J Type Thermocouple,K Type Thermocouple

Junction Weld Description


Calibration

  Standard Limits of Error
Standard
TYPE J
TYPE K

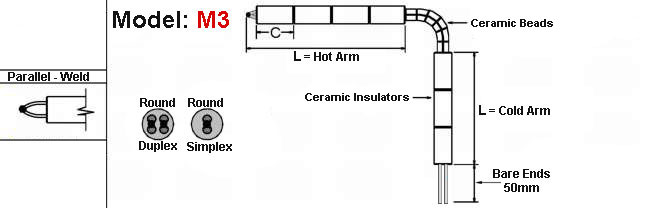

"L" Length on above diagram (Hot Arm)

"L" Length on above diagram (Cold Arm)

Wire Diameter & Ceramic Insulator Selection

  Wire Dia. C. Insulator O.D. Shape “C” Length Elements
1.6 mm 8.5 mm Round 25 mm
1.6 mm 9 mm Round 25 mm
2 mm 9.5 mm Round 25 mm
2 mm 11 mm Round 25 mm
2 mm 12 mm Round 25 mm
2.5 mm 12.5 mm Round 25 mm
2.5 mm 13.5 mm Round 25 mm
3.2mm 13.5 mm Round 25 mm
1.6 mm 4 mm Ceramic Beads 25 mm Simplex
2 mm 5 mm Ceramic Beads 25 mm Simplex
2.5 mm 5 mm Ceramic Beads 25 mm Simplex
3.2 mm 6 mm Ceramic Beads 25 mm Simplex
