Base Metal Thermocouple(Bare Elements )With Ceramic Insulators

BUILD YOUR SENSOR >>>

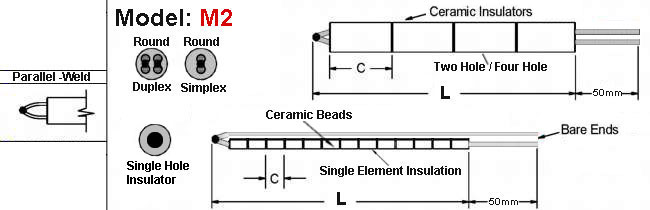

Select Your configuration mentioned Below Diagram
DOWNLOAD PRODUCT CATLOG >>>
link to partial catalog Base Metal Thermocouple(Bare Elements )With Ceramic Insulators



085

Junction Weld Description


Calibration

  Standard Limits of Error
Standard
TYPE J
TYPE K

"L" Length on above diagram

Wire Diameter & Ceramic Insulator Selection

  Wire Dia. C. Insulator O.D. Shape ā€œCā€ Length Elements
1.6 mm 8.5 mm Round 25 mm
1.6 mm 9 mm Round 25 mm
2 mm 9.5 mm Round 25 mm
2 mm 11 mm Round 25 mm
2 mm 12 mm Round 25 mm
2.5 mm 12.5 mm Round 25 mm
2.5 mm 13.5 mm Round 25 mm
3.2mm 13.5 mm Round 25 mm
1.6 mm 4 mm Ceramic Beads 25 mm Simplex
2 mm 5 mm Ceramic Beads 25 mm Simplex
2.5 mm 5 mm Ceramic Beads 25 mm Simplex
3.2 mm 6 mm Ceramic Beads 25 mm Simplex
