Model: M1

All Shipments Are Dispatched From Ajmer (INDIA)
Base Metal Thermocouple (Bare Elements)
BUILD YOUR SENSOR >>>

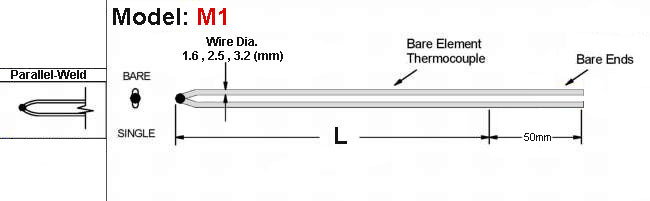

Select Your configuration mentioned Below Diagram
DOWNLOAD PRODUCT CATLOG >>>
link to partial catalogBase Metal Thermocouple (Bare Elements)
Base Metal Thermocouple >>>

A thermocouple is an electrical device consisting of two dissimilar electrical conductors forming electrical junctions at differing temperatures. A thermocouple produces a temperature-dependent voltage as a result of the thermoelectric effect, and this voltage can be interpreted to measure temperature.

Type K Thermocouple is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C with it's temperature range of -200°C to 1300°C and accuracy +/- 0.75%

Type J Thermocouple has a more restricted range −40°C to 750°C than type K but higher sensitivity of about 50 µV/°C with accuracy +/- 0.75%.




Junction Weld Description


Calibration

  Standard Limits of Error
Standard
TYPE J
TYPE K

"L" Length on above diagram

Thermocouple Wire Diameter





Personal Informaction

Base Metal Thermocouple (Bare Elements)
